D Series 13bar Aluminum Plate Refrigerated Dryer

Update time: 2021-01-14 21:14:38

Model: D10

Category: Refrigerated Dryers

Description: D Series refrigerated dryer is to use the principle of refrigeration to cool compressed air and discharge condensate water to achieve the purpose of drying compressed air.The pressure dew point can be +5℃.

E-Mail:sales@scala-filtration.com Order

Details

D Series refrigeration dryer is to use the principle of refrigeration to cool compressed air and discharge condensate water to achieve the purpose of drying compressed air.The pressure dew point can be +5℃.

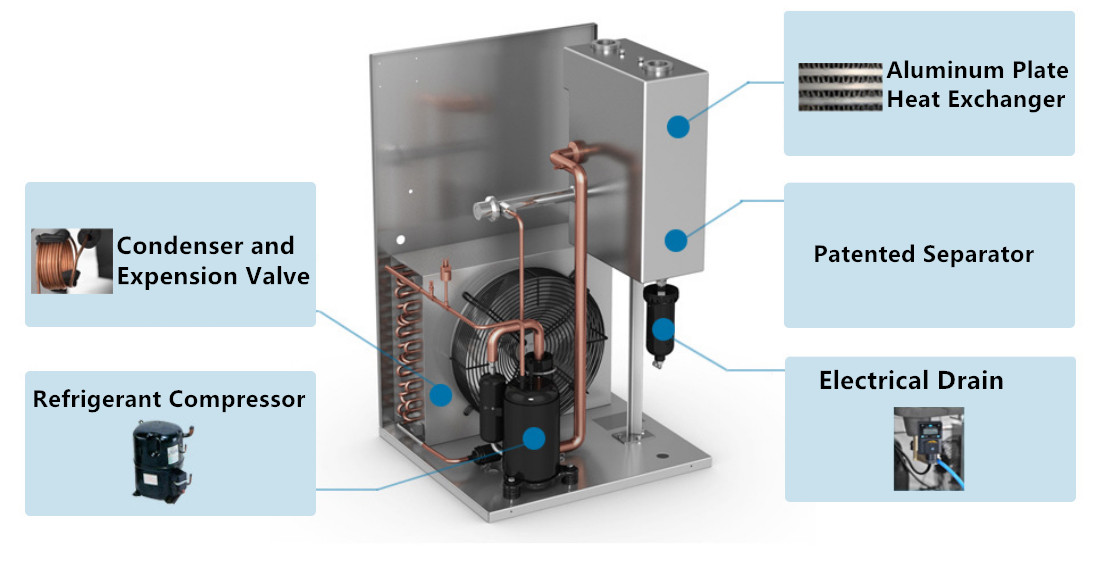

High Reliability- Industrial grade refrigerant compressor. Advanced pipeline design with fewer components and soldering points to reduce the risk of refrigerant leakage.

High Efficiency- All-in-one aluminum plate heat exchanger with low inlet/ outlet temperature difference.Electrical timed drain to ensure discharge of condensate drain.

Eco-friendly- R134a and R410A refrigerant with cold energy recovery.

Intelligent control -With dew point display and fault alarm function.

Model	Inlet Capacity			Power	Inlet/Outlet	Dimensions (mm)			Weight
Model	m3/min	m3/h	cfm	Kw	Connection	L	W	H	kg
D10	1	60	35	0.217	G3/4''	352	430	445	30
D13	1.3	78	46	0.36	G3/4''	550	370	704	30
D21	2.1	126	74	0.364	G3/4''	550	370	704	34
D40	4	240	141	0.7	G1''	520	500	809	55
D66	6.6	396	233	0.951	G1.1/2''	520	500	809	60
D85	8.5	510	300	0.988	G1.1/2''	550	600	958	68
D105	10.5	630	371	1	G2''	550	600	958	75
D140	14	840	494	1.674	G2''	900	750	1009	110
D175	17.5	1050	618	1.75	G2''	900	750	1009	126
D220	22	1320	777	2.85	G2.1/2''	1050	660	1130	140
D260	26	1560	918	2.95	G2.1/2''	1050	1660	1130	162

Note: Power supply: 230v-1ph-50hz,pressure drop less than 0.21barg

Standard inlet temperature 40℃,inlet pressure 7barg

Inlet Pressure Correction
Inlet Pressure (barg)	5	6	7	8	10	13
Correction Factor	0.9	0.96	1	1.03	1.08	1.13

Inlet Temperature Correction
Inlet Temperature(℃)	30	35	40	45	50	55
Correction Factor	1	1	1	0.82	0.69	0.58

Ambient Temperature Correction
Ambient Temperature(℃)	30	35	40	45
Correction Factor	1	0.91	0.81	0.72

m3/min

m3/h

cfm
