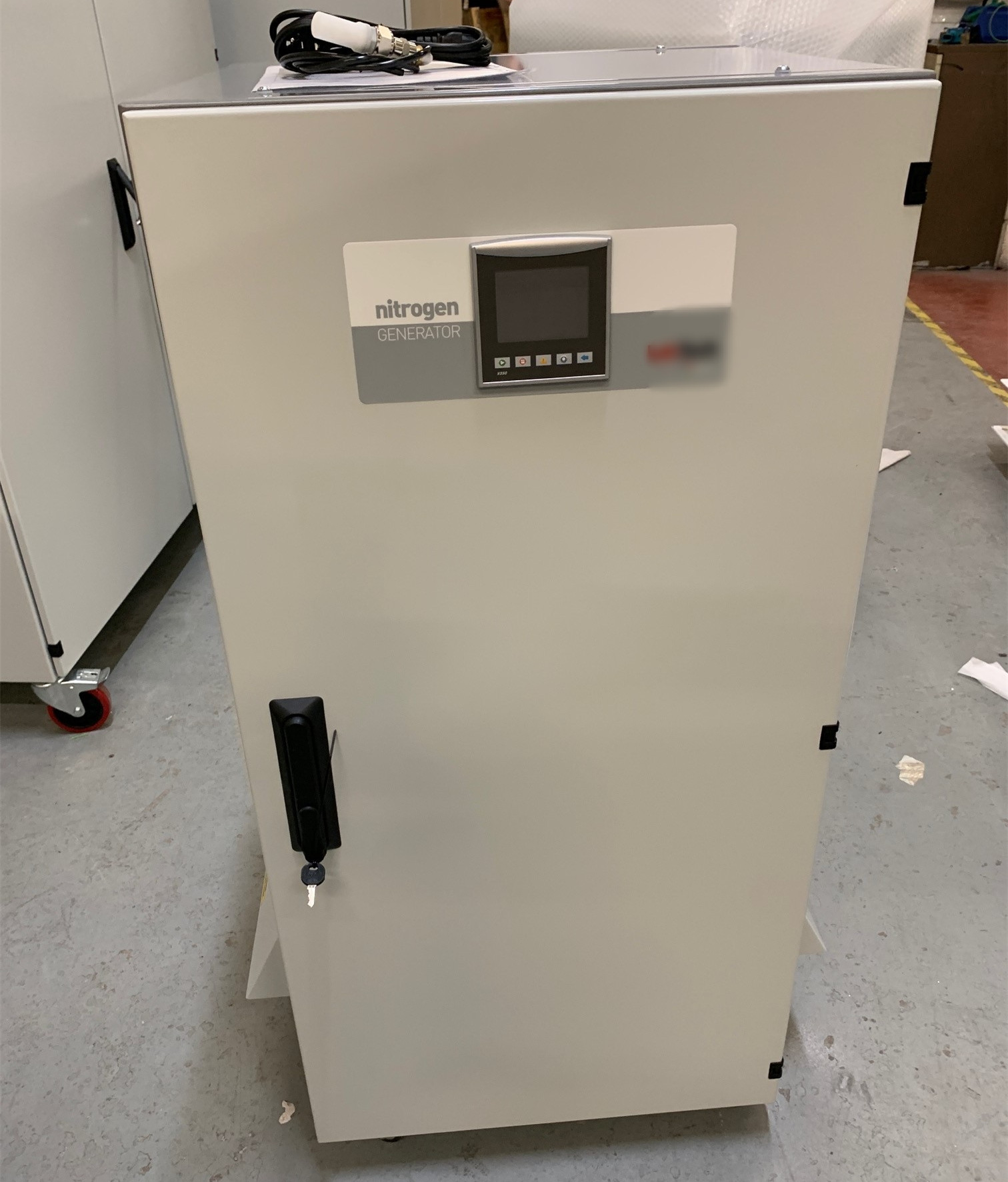

LABGAS Series laboratory nitrogen gas generator
LABGAS is our latest Nitrogen PSA laboratory nitrogen gas generator. Utilising the reliable and efficient PSA technique of sep arating Nitrogen and Oxygen is used to produce LCMS quality nitrogen gas for your instrument.
LABGAS Series laboratory nitrogen gas generator is controlled using the latest in HMI touch screen technology to display the process in real-time, inlet /outlet pressures, Trend graphs and much more......
Laboratory nitrogen gas generator features
Internal oil-free air compressor or without compressor models
Compact and Quiet design
Auto-run facility (timer)
Energy saving mode
Outlet flow indicator (% flow)
Trend graphs into MS excel
Alarms with help menu
Audible service alarm sounder
Applications
LCMS
Fume Cupboards
Solvent Evaporation
LABGAS Series laboratory nitrogen gas generator is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the ‘LABGAS on-site Laboratory nitrogen generator are some of the most advanced and intelligent available. The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like LABGAS +.
The NG35 is one of the most economical LCMS laboratory nitrogen generators on the market for both purchase price and on-going running / maintenance costs. Together with our unrivalled experience and knowledge of nitrogen gas generators with 1000’s running world-wide supported by our national and international partners.
Nitrogen Outlet Flowrate - Nl/min vs Oxygen Concentration | |||||||||
Model |
99.9% |
99.5% |
99% |
98% |
Pressure (bar g) |
L mm |
W mm |
H mm |
Weight kg |
NG35-0 |
25 |
30 |
35 |
- |
7 |
660 |
400 |
700 |
85 |
NG35-1 |
25 |
30 |
35 |
- |
7 |
600 |
600 |
1300 |
150 |
NG64-0 |
- |
45 |
50 |
64 |
7 |
600 |
600 |
1300 |
125 |
NG64-1 |
- |
45 |
50 |
64 |
7 |
600 |
600 |
1300 |
175 |
Specification based on 9barg (130psig) air inlet pressure @ 20-25 deg C ambient air temperature. For inlet pressures and ambient air temperature outside these conditions please contact us.
Operating Conditions | |
Ambient Temp Range | 5-40 °C |
Start-up Time | <15 mins |
Nitrogen outlet particles | <0.01 micron |
Power supply | 230v A.C. single phase 50Hz (1.5Kw) |
Air Inlet Requirement | 85 LPM (NG35-0) |
154 LPM (NG64-0) | |
Socket Inlet | IIEC type C14 (fused) 6.3A max |
Inlet / Outlet Connections | 1/4” BSPP |
Laboratory nitrogen gas generator has the following four advantages:
1. Only need to supply power to work, and in ECO mode, it can control the operation according to the remaining amount of liquid nitrogen. Thereby reducing power consumption. It can also perform stable and continuous cooling in countries with imperfect infrastructure.
2. Since stable and continuous supply is possible, it is no longer necessary to confirm the remaining amount of liquid nitrogen.
3. It can be connected through the backup power supply, and can continue to cool in the event of a disaster.
4. The transportation and management of liquid nitrogen in the research institute is very cumbersome, and the work of ensuring safety is also difficult. This product eliminates the cumbersome procedures such as liquid nitrogen management, and improves safety.
When using liquid nitrogen for the airtightness test, the equipment and pipelines must be divided according to the force level, and the connection valves between each other and the outside of the system should be separated by blind plates to prevent injury to others; the safety valve is in good condition and all overranges are removed The instrument or the root valve should be closed to prevent damage to the instrument, equipment, and pipeline due to overpressure; there should be a special person to monitor during the charging process to prevent overtemperature and overpressure. The selected test pressure is 1.1 times the operating pressure. During the operation, other operating personnel in the relevant system should be evacuated, and the position of the inspection personnel should pay attention to the side and opposite sides of the flange. In addition, the treatment of the leakage point should be carried out after the pressure is released, and the treatment with pressure is strictly prohibited.
