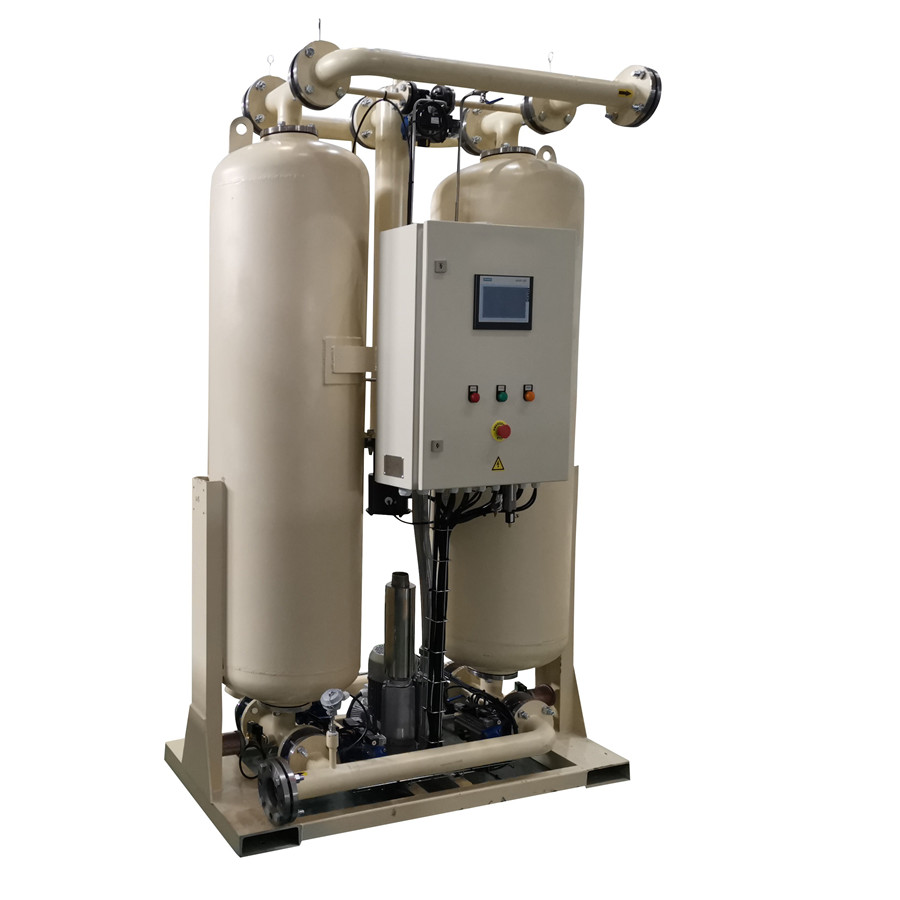

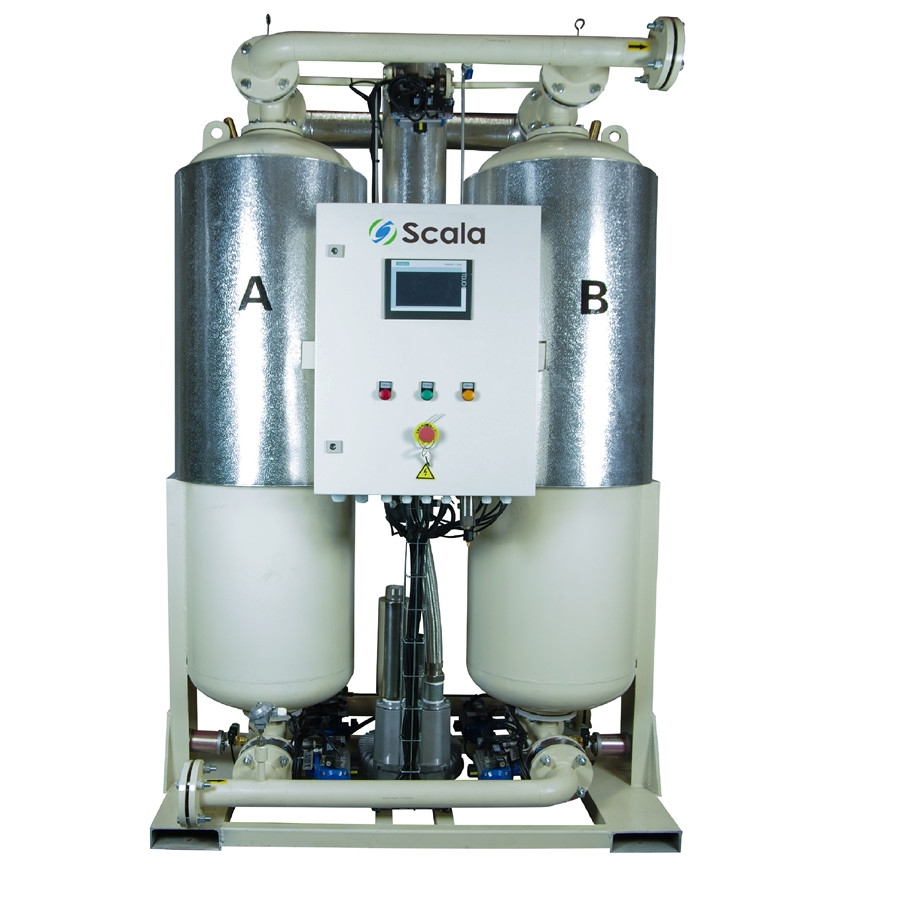

XB Series blower purge compressed air dryer

Update time:2020/10/27 16:51:08
Product number:
Category:Blower Purge Adsorption Dryer
Description:Blower purge adsorption dryer are designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of dryer requires two columns operated alternately.
Detail intruduction

Blower purge adsorption dryer



DESCRIPTION

XB Series blower purge adsorption dryer are designed for continuous separation of water vapour from compressed air thus reducing dew point. Operation of dryer requires two columns operated alternately. Adsorption takes place under pressure in first column while second column regenerates with a heated ambient air or purge.



XB Series blower purge adsorption dryer consists of two columns, filled with desiccant beads, blower, heater, controller with LCD dicplay, valves, manometers, and support construction. Proven robust design enables efficient and reliable operation, fast installation and simple maintenance.


HIGH QUALITY TWO LAYER DESICCANT BED

XB Series blower purge adsorption dryer are filled with a high quality robust desiccant which results in stable operation with low energy input for regeneration. The primary desiccant is a silica gel with an extremely high drying potential.



To prevent potential degradation of the primary desiccant, due to liquid water, the bottom part of the column is filled with an additional layer of special water resistant silica gel.  The advantages are as following:

Stable pressure dew point down to -70 deg c

Low regeneration temperature with energy saving up to 33%

Extended desiccant service life



Energy saving dew point dependent  control (DPD)

XB Series blower purge adsorption dryer are designed for “full load” at pre-determined operating conditions (flow, pressure, temperature).



However in reality “full load” is typically not present all the time meaning that the dryer is operating under partial load. In this case the adsorption cycle can be extended. If the BR dryer is equipped with dew point dependent sensor (available as optional equipment) it can detect when the load is reduced at witch  point the controller automatically adjusts the cycles so that energy consumption is reduced to a minimum.



OPERATING CONDITIONS

Operating pressure           4 to 11 bar

Pressure dew point:          -40 °C

Operating temp.range:      1,5 to 50 °C

Flow rate                            390 to 20.200 Nm3/h

Protection class:                IP 54

Filter (inlet) super fine:      0,01 μm

Filter (outlet) dust filter;     1 μm



Technical Data

  Flow Rate Power (kw) Inlet/outlet Connection Cooling water Dimensions

Model m3/min CFM L(mm) W(mm) H(mm)
XB130 13.5 476 7.5 DN50 G2 1/2” 1600 1100 2380
XB170 17 600 9.5 DN65 G2 1/2” 1750 1200 2450
XB210 21.5 758 13.2 DN80 G2 1/2” 1850 1300 2480
XB250 25 882 13.2 DN80 G2 1/2” 1900 1350 2580
XB280 28.5 1006 17 DN80 G2 1/2” 1900 1350 2760
XB320 32 1129 17 DN80 G2” 2000 1450 2630
XB370 37 1306 21 DN80 G2” 2200 1500 2700
XB400 40 1412 21 DN100 G2” 2200 1500 2830
XB450 45 1588 24.5 DN100 G2” 2200 1600 2880
XB500 50 1765 27.5 DN100 G1 1/2” 2400 1700 2750
XB550 55 1941 31.5 DN100 G1 1/2” 2400 1700 2850
XB600 60 2118 33.5 DN120 G1 1/2” 2400 1700 2950
XB650 65 2294 34.5 DN125 G1 1/2” 2650 1800 2800
XB750 75 2647 36.5 DN125 G1 1/2” 2650 1800 2900
XB850 85 3000 42 DN200 G1 1/2” 2650 1900 2950
XB950 95 3353 45 DN200 G1 1/2” 2800 2000 2900
XB1100 110 3883 52 DN150 G1” 3900 2450 2750
XB1200 120 4236 60 DN150 G1” 4100 2450 2850
XB1400 140 4942 69 DN150 G1” 4300 2500 2900
XB1600 160 5648 77 DN150 G1” 4750 2600 2900

The blower purge adsorption dryer
The blower purge adsorption dryer





Blower purge adsorption dryer installation rules:
1. When choosing a site, a wide and well-lit place must be used to facilitate operation and maintenance.
2. Air requirements: The relative humidity of the air should be low, the dust is little, the air is clean and well ventilated.
3. Environmental requirements: The ambient temperature must be lower than 40 ℃, because the higher the ambient temperature, the less the air output from the compressor.
5. Reserve a passageway, and those who have the conditions can install a crane to facilitate maintenance.
6. Reserve space for maintenance. The distance between the compressor and the wall must be at least 70 cm.
7. The distance from the top space is at least 1 meter.



Notes on the use of the blower purge adsorption dryer:
1. The oil content of the air entering the tower should be controlled below 0.01mg/m3. In view of the fact that oil-free air compressors cannot be truly oil-free at present, in order to prevent the accumulation of trace oil in the adsorption bed and block the dryer, the air intake in the dryer It is necessary to install a degreaser at the mouth;
2. The blower purge adsorption dryer should be used under the conditions of rated temperature and pressure. When the intake air temperature is higher or the intake pressure is lower than the rated value, the capacity should be corrected;
3. When the blower purge adsorption dryer is used in conjunction with a piston air compressor, a pressure-stabilized gas storage tank should be installed in front to eliminate the high-speed impact of the pulsating airflow on the adsorbent;
4. When using the blower purge adsorption dryer, do not deliberately "energy-saving" and reduce the regeneration gas consumption (including regeneration gas volume and heating power);
5. When there is a "cold dryer front", the connection between the adsorption dryer and the cold dryer, as long as the site permits, should be installed as far as possible to reduce the air pressure drop, improve the conditions of the cold dryer and facilitate daily Maintenance overhaul
