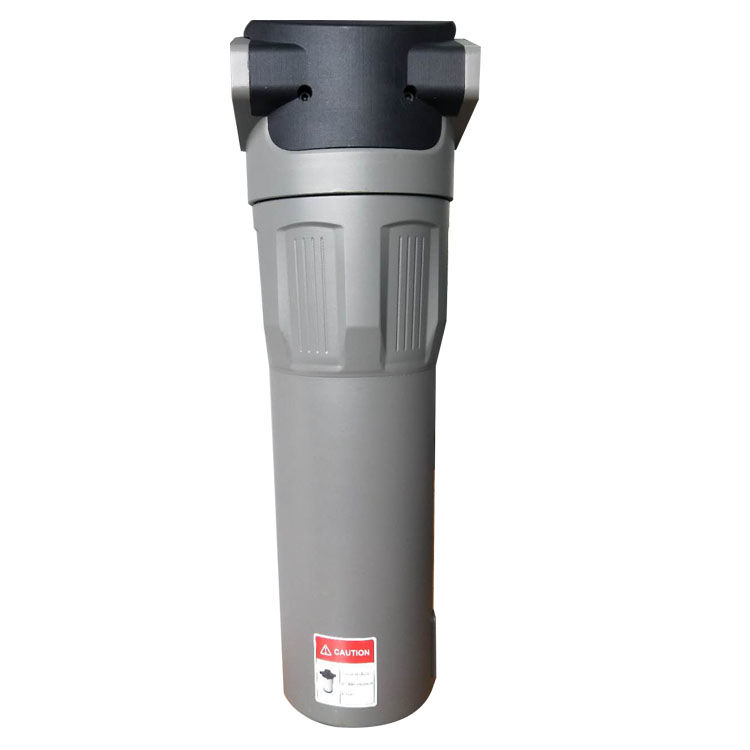

CW series compressed air moisture separator can remove 99% of condensate water, which increase the efficiency of down steam equipment. Double-stage cyclone water separator design features higher water removal efficiency than traditional separator.
Compressed air moisture separator features:
1.compressed air moisture separator built-in rotating blades and centrifugal type separation achieving higher efficient water separation.
2.No need replacing filter element ,simple maintenance by washing the element .
3.Durable filter housing with cooling function.
4.Durable stainless steel automatic drain with manual testing function.
5.CW series compressed air moisture separator can be installed after the air compressor, after cooler and air tank etc.
TECHNICAL DATA | ||||||
Filter Model | Flow Capacity | Inlet/Outlet Connection | Dimensions(mm) | Weight | ||
m3/min | cfm | A | B | Kg | ||
C010W | 1.2 | 42 | 3/4" | 95 | 240 | 0.7 |
C020W | 2.3 | 81 | l" | 95 | 280 | 1.1 |
C030W | 3.5 | 124 | 1-1/2" | 125 | 302 | 1.7 |
C070W | 7.8 | 275 | 1-1/2" | 125 | 421 | 3.5 |
C150W | 15.5 | 547 | 2" | 175 | 550 | 6.5 |
Compressed air moisture separator uses a wire mesh to remove the foam. The shell is made of steel welded tank structure. The pressure is generally 1.0MPa. At the same time, the mechanism of direct interception, stargazing collision, Brownian diffusion and accumulation can be used to effectively remove the compressed air. In the dust, water and oil mist in this series, this series of products have a large water removal capacity and a large oil removal capacity and a wide range of application conditions.
Compressed air moisture separator separates the water in the compressed air from the compressed air. It uses centrifugal, gravity, inertial, collision and other mechanisms to effectively remove the liquid water mist in the compressed air. It is a compressed air high-efficiency filter and a refrigeration type, adsorption The essential pretreatment device of the compressed air dryer does not need to replace components, and the pressure loss is almost negligible, and the sewage is automatically discharged.
Compressed air moisture separator is an indispensable pretreatment device for the adsorption compressed air dryer. The first task of the compressed air gas-water separator is to get out the moisture in the compressed air to achieve compressed air purification. The centrifugal, gravity, inertial, collision and other mechanisms are used to effectively remove the liquid water mist in the compressed air. It is a compressed air efficient filter and The necessary pretreatment device for the refrigeration and adsorption compressed air dryer.
Safety matters in use of compressed air moisture separator:
1. Compressed air moisture separator must be installed correctly, and only qualified operators can debug and maintain it in accordance with the operation guide to make it operate safely.
2. Failure to close the isolation valve during installation and maintenance will cause damage to the components of the system and harm to the human body. The danger also includes: the protection device and the ventilation pipe or the alarm system are closed. Make sure the isolation valve is closed to avoid the impact of the system.
3. Pressure: consider whether there is medium in the pipeline during maintenance and repair. Make sure that the pressure medium has been isolated and the safety air passage has been vented to the atmosphere to solve it by installing a vent valve. Even if the pressure gauge indicates zero, do not think that the system To empty.
4. Temperature: After closing the isolation valve, it is necessary for a period of time to make the operating part close to normal temperature to avoid scalding.
5. Disposal: The product can be recycled.
