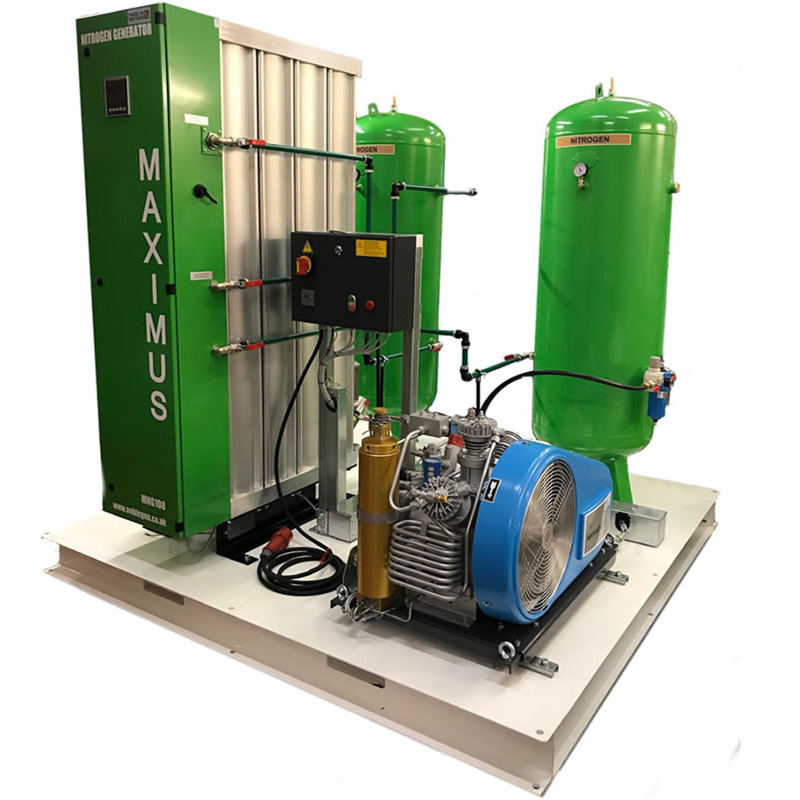

Maximus Series high purity laboratory nitrogen gas generator
Maxinus is our latest PSA Nitrogen Gas Generators. Utilising the reliable and efficient PSA technique of separating Nitrogen and Oxygen is used to produce high
quality Nitrogen Gas at various flows and purities (see performance data sheets).
Maximus Series high purity laboratory nitrogen gas generator is controlled using the latest in HMI touch screen technology to display the process in real-time, inlet /outlet pressures, Trend graphs and much more......
Features
· Range of Flow-rates
· Air Compressor available
· Compact and Quiet design
· Purity 99.9995% - 95%
· Oxygen Analyser as standard
· Auto-run facility
· Energy saving mode
· Outlet flow indicator (% flow)
· Trend graphs into MS excel
· Alarms with help menu
· Audible alarm sounder
· Remote access via internet
Applications
· Pharmaceutical & Laboratory
· General laboratory
· LC/MS
· Fume cupboards
· Food packaging
· Soldering
· Laser Cutting
Maximus Series high purity laboratory nitrogen gas generator is your reliable and efficient alternative to conventional high pressure cylinder and liquid gas supplies. Taking away the on-going costs, safety considerations and transportation of traditional gas supplies, the Maximus on-site Nitrogen systems are some of the most advanced and intelligent available. The control system gives the user all the information necessary to ensure an efficient and consistent supply of gas is always available. From the process to flow and alarms, including auto-start / stop function, Trend graphs, service alarm and service records page, there is simply no other laboratory nitrogen system quite like Maximus.
The Maximus is one of the most economical nitrogen generators on the market for both purchase price and on-going running / maintenance costs. Together with our unrivalled experience and knowledge of nitrogen gas generators with 1000’s running world-wide supported by our national and international partners.
| Model | 5ppm | 50ppm | 100ppm | 250ppm | 500ppm | 0.10% | 0.50% | 1.00% | 2.00% | 3.00% | 5.00% |
| MNG104 | 2 | 3.8 | 5.5 | 7.1 | 8.6 | 9 | 14.1 | 17.8 | 22 | 25.8 | 32.2 |
| MNG106 | 3 | 5.8 | 8.5 | 10.7 | 13 | 13.5 | 21.2 | 26.6 | 32.8 | 38.7 | 48.3 |
| MNG108 | 4 | 7.8 | 11 | 14.3 | 17.3 | 18 | 28.3 | 35.5 | 43.8 | 51.6 | 64.4 |
| MNG110 | 5 | 9.6 | 14 | 17.8 | 21.6 | 22.5 | 35.5 | 44.4 | 54.7 | 64.5 | 80.4 |
| MNG112 | 6 | 11.5 | 16.5 | 21.4 | 26 | 26.8 | 42.4 | 53.5 | 65.7 | 77.4 | 96.5 |
| MNG116 | 8 | 14.5 | 21 | 27.1 | 32.8 | 34 | 53.7 | 67.5 | 83.2 | 98.1 | 122.3 |
| MNG120 | 10 | 17.5 | 25.3 | 32.8 | 39.7 | 41.2 | 65 | 81.7 | 100.7 | 118.7 | 148 |
| Air:N2 ratio | 10:01 | 8:01 | 6:01 | 5:01 | 3.6:1 | 3.4:1 | 2.8:1 | 2.6:1 | 2.4:1 | 2.2:1 | 2.0:1 |
| With PDS | 9.5:1 | 7.7:1 | 5.6:1 | 4.6:1 | 3.2:1 | 3.0:1 | 2.5:1 | 2.3:1 | 2.1:1 | 1.9:1 | 1.8:1 |
Specification based on 9barg (130psig) air inlet pressure @ 20-25 deg C ambient air temperature. For inlet pressures and ambient air temperature outside these conditions please contact us.
| General Specifications | |
| Ambient Temp Range | 5-45 °C (41-113°F) |
| Air Inlet Pressure | 7-10 bar g (101.5-145 psi g) |
| Nitrogen Outlet Pressure* | Up to 9 bar g (130.5 psi g) |
| Air Inlet Requirement | Dew-point -40 °C (-40 °F) |
| Particulate: <0.1 micron | |
| Oil: <0.01 mg/m 3 | |
| Electrical Supply | 230v a.c. / 1ph / 50-60Hz |
| 115v a.c. / 1ph / 50-60Hz | |
| Socket Inlet | Gland Entry (MCB) 10A |
| Communications | Volt-Free Common Alarm |
| Inlet / Outlet Connections | 1” BSPP x 2 / ½” BSPP x 2 |
| Dimensions (mm) and Weights (kg) | ||||
| Model | Length | Width | Height | Weight |
| MNG104 | 650 | 600 | 1870 | 230 |
| MNG106 | 780 | 600 | 1870 | 350 |
| MNG108 | 910 | 600 | 1870 | 445 |
| MNG110 | 1040 | 600 | 1870 | 540 |
| MNG112 | 1170 | 600 | 1870 | 635 |
| MNG116 | 1480 | 600 | 1870 | 820 |
| MNG120 | 1740 | 600 | 1870 | 960 |
