Flange compressed air filter,as the name suggests, is a machine that compresses air in a free state into a certain pressure energy .
Flange compressed air filter maintenance is generally divided into four stages, namely: daily maintenance, monthly maintenance, quarterly maintenance, annual maintenance.
1. Daily maintenance: check the oil level, check the air filter and coolant level, check the hose and all pipe joints for leaks, check that the consumable parts have reached the replacement cycle and must be shut down to replace, check the exhaust temperature of the host, reach Or close to the warning temperature, the oil cooler must be cleaned to check the pressure difference of the separator, when it reaches more than 0.6 bar (limit 1 bar) or the pressure difference starts to decline, it should be stopped to replace the separation core.
2. Monthly maintenance: check the cooler, clean it if necessary, check the connection of all wires and tighten it, check the AC contactor contacts, clean the dust on the surface of the motor suction port and the surface of the housing, clean the oil return filter, Check that the air compressor settings and operation are consistent.
3. Quarterly maintenance: clean the main motor and fan motor, replace the oil filter, clean the cooler, check the minimum pressure valve, safety valve, and check the sensor.
4. Maintenance every year: replace lubricating oil and oil-gas separator filter element, replace air filter element, oil filter, safety valve calibration, check elastic coupling, check cooling fan, clean automatic drain valve, replenish or replace motor grease. Flange compressed air filter is a relatively complicated equipment, so its maintenance is strict, I hope every user can pay attention to it.
Grade P - 3 micro general purpose particulate filter
Separator, filter, removal large amount of solid or liquid rust, abrasion particles.
Grade M- 1 micro, 0.1mg/m3 general purpose coalescing filter
Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols
Grade H- 0.01micro, 0.01mg/m3 high efficiency colaescing filter
Removal of small amounts of solid or liquid,fine contaminants, fine dust particle, oil mist and aerosol
Grade C- 0.003mg/m3 active carbon filter
Removal of small amounts of gaseous, contaminants in particular oil vapor.
Max. working pressure: 10bar g
Max.operating temperature for grade P,M and H : 100 deg c
Max.operating temperature for grade C: 60 deg c

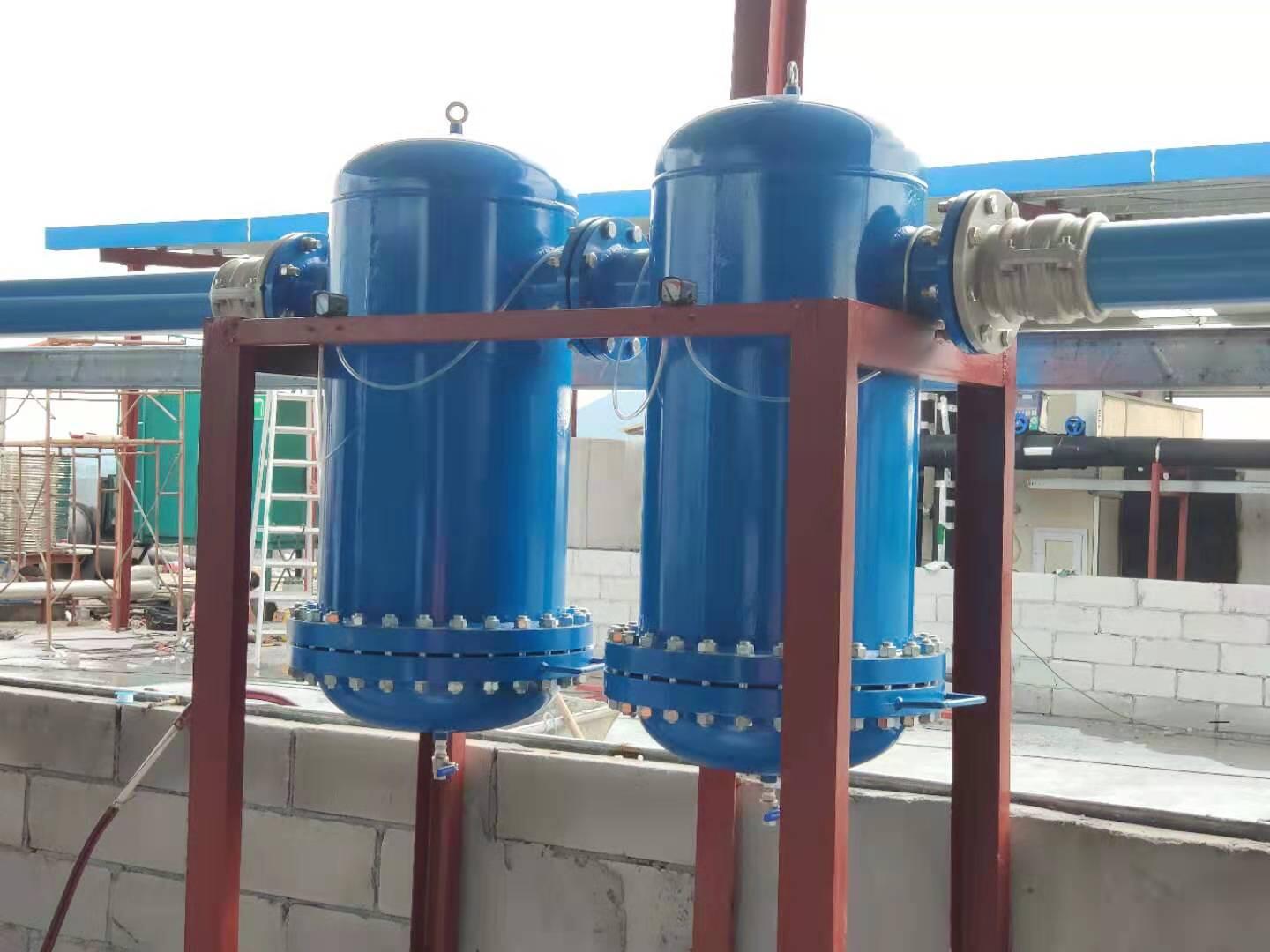

FL Series carbon steel flange compressed air filter
Filter Model | Flow Capacity | Inlet/Outlet Connection | Element Model | Eement Quantity | Dimensions(mm) | Weight | |||
m3/min | cfm | A | B | C | Kg | ||||
FL1400 | 42 | 1483 | DN100 | 0745FE* | 2 | 525 | 980 | 782 | 96 |
FL2100 | 63 | 2224 | DN100 | 0745FE* | 3 | 525 | 1003 | 794 | 102 |
FL2800 | 84 | 2965 | DN150 | 0745FE* | 4 | 577 | 1064 | 857 | 147 |
FL3500 | 105 | 3707 | DN150 | 0745FE* | 5 | 651 | 1123 | 862 | 161 |
FL4448 | 126 | 4448 | DN200 | 0745FE* | 6 | 651 | 1180 | 891 | 182 |
FL5189 | 147 | 5189 | DN200 | 0745FE* | 7 | 718 | 1246 | 944 | 211 |
FL5930 | 168 | 5903 | DN200 | 0745FE* | 8 | 718 | 1246 | 944 | 240 |
FL6672 | 189 | 6672 | DN200 | 0745FE* | 9 | 784 | 1262 | 936 | 280 |
FL7350 | 210 | 7413 | DN250 | 0745FE* | 10 | 784 | 1317 | 964 | 290 |
FL8542 | 242 | 8542 | DN250 | 0745FE* | 11 | 834 | 1483 | 1122 | 380 |
FL10096 | 286 | 10096 | DN300 | 0745FE* | 12 | 876 | 1540 | 1132 | 439 |
FL11649 | 330 | 11649 | DN300 | 0745FE* | 13 | 998 | 1586 | 1146 |
550 |
To browse flange compressed air filter, please click HERE. You can also Contact Us if you have a question about filter sizing for your compressed air application.
