Introduction to the working process of flange compressed air filter

Flange compressed air filter is a device that removes pollutants in the compressed air system and provides high-quality compressed air that meets the application requirements for the compressor air system.

Its structure and quality have reached a relatively good ideal state, and the production process is also perfect, so the later operation will achieve higher efficiency, which is one of the reasons why users choose.Of course, ordinary households do not have many requirements for flange compressed air filters, as long as they can achieve a certain degree of purification of air, unless the type of enterprise unit has higher requirements for equipment, and there is a specific index It is recommended to understand some device parameters before choosing.

Flange compressed air filter work flow introduction:
1. Carry compressed air containing harmful substances such as dust, oil, rust and moisture into the primary filtering device of the compressed air filter.

2. When the compressed air passes through the first-stage cylindrical mesh filter core, a coalescence effect occurs. Larger particles will be adsorbed on the filter material, and the water will condense into larger water droplets.

3. When entering the separation chamber, the compressed air speed slows down, causing the particles to gather again, and the water mist condenses on a honeycomb water collector again.

4. Water carrying impurity particles flows to the drainage device along the bottom, and is discharged through an automatic or electric drainage valve.

5. More than 95% of the water droplets, oil and large particles in the compressed air have been removed by a filter element, and the compressed air after the first-stage filtration has entered the second-stage filter element.

6. When the compressed air passes through the second-stage fiber filter made of special cotton, thousands of small vortices will be generated. At the same time, the compressed air will be accelerated dozens of times. The center of the vortex is like a tornado, forming a vacuum state. The water droplets that have not been filtered by the primary filtration are vaporized, converted, and filtered again. At the same time, the particles as small as 5 microns are completely removed by the secondary filter.

7. The two-stage filtration achieves clean, dry compressed air that is dust-free, rust-free, oil-free, and water-free, ensuring the normal operation of pneumatic equipment and effectively extending the service life of pneumatic equipment.

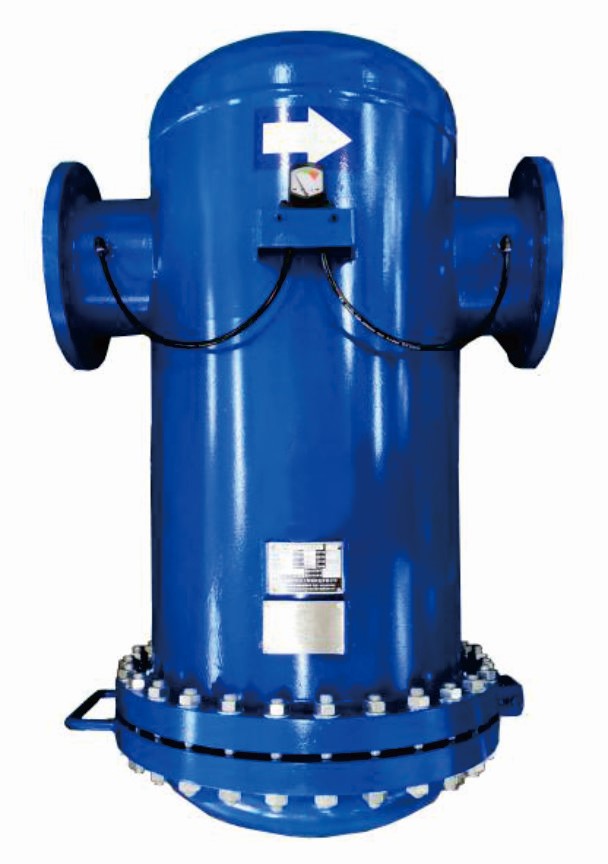

FL Series carbon steel?flange compressed air filter
SCALA flange compressed air filter is equipped with differential pressure gauge which can precisely indicate the differential pressure and remind user to replace the element timely.

Stailness steel automatic drain with manual testing function. It has high reliability and durable lifetime. If the condensate water is ?not discharged timely, the oil and water may be brought into the downstream pipeline to cause contamination.
Pleated filter elements provides a greater filtration volume than non-pleated. The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.

Stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.
Heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.

No Pull rod design, saving installation space and very easy to change the element.

Elbow piping from air inlet to element which has smaller pressure drop compared to right anglepiping. Antioxidative and painting treatment on housing features high corrosion resistance.

Air leakage can cause energy loss,many micro leakages are not easily found, SCALA filters are 100% leakage tested.

Flange compressed air filter filtration gade
Grade P - 3 micro general purpose particulate filter
Separator, filter, removal large amount of solid or liquid rust, abrasion particles.
Grade M- 1 micro,0.1mg/m3 general purpose coalescing filter
Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols
Grade H- 0.01micro,0.01mg/m3 high efficiency colaescing filter?
Removal of small amounts of solid or liquid,fine contaminants,fine dust particle,oil mist and aerosol
Grade C- 0.003mg/m3 ?active carbon filter
Removal of small amounts of gaseous, contaminants in particular oil vapor.

Flange compressed air filter
