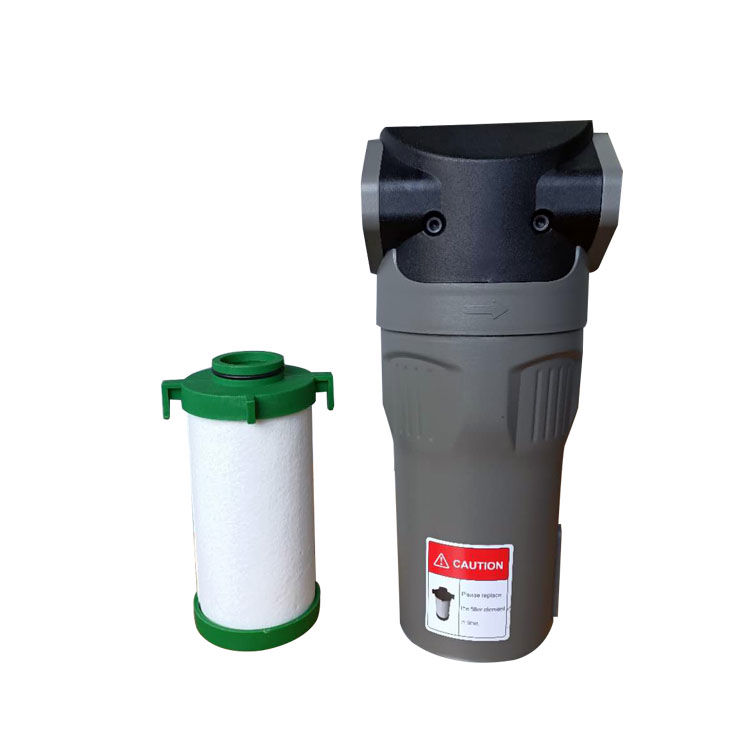

Introduction to the selection principle and maintenance method of compressed air filter

Determine the efficiency of the final stage of the compressed air filter according to the required indoor cleanliness and purification standards, and reasonably select the combined stages and the efficiency of each stage. If the room requires general purification, the primary effect filter can be used; if the room requires medium purification, the primary and medium-efficiency two-stage filters should be used; if the indoor requires ultra-clean purification, the primary, medium and three-stage filters should be used Purify and filter, and match the efficiency of each level of filter reasonably and properly. If the efficiency of the adjacent two levels of filters is too different, the previous level of filter will not be able to protect the next level of filter.
　　

Correctly measure the dust content and characteristics of dust particles in outdoor air. Because the filter filters and purifies the outdoor air and sends it indoors, the dust content of the outdoor air is a very important data. Especially in the multi-stage purification and filtration process, the use environment, spare parts cost, operating energy consumption, maintenance and supply and other factors should be considered when choosing a pre-filter.

Maintenance method of compressed air filter:
　　

1. Keep monitoring the inlet and outlet pressure difference of the filter. If the pressure difference is too small, the filter element may be broken down, or improper installation may cause the filter inlet and outlet to bypass, or the oil flow is insufficient; if the pressure difference is too large, it may be due to low oil temperature and high viscosity , Or the oil is emulsified, or the filter element is seriously polluted and needs to be replaced or cleaned.
　　

2. Timely cleaning, cleaning the filter and replacing the filter element must be carried out in time according to the time interval specified in the manual and according to the pressure difference between the inlet and outlet of the filter. Not only replace or clean the filter element, but also clean the filter housing.
　　

3. Pay attention to purification and keep the special purification device running normally and continuously.
　　

4. Install an oil suction filter on the suction port or suction line of the pump to prevent large particles from being absorbed into the pump. The filtering accuracy is generally 80-120 mesh.
　　

5. Install a precision filter in the pressure pipeline or in front of the precision components (speed control components, servo valves, proportional valves) to ensure that the oil pollution through the components is controlled within the required range.
　　

6. For hydraulic systems with large flow, an oil return filter can be installed on the oil return main pipeline, and the oil cooling system can be used as an independent bypass filter system to force the oil to be filtered, which plays a dual role, cooling Filter again.
