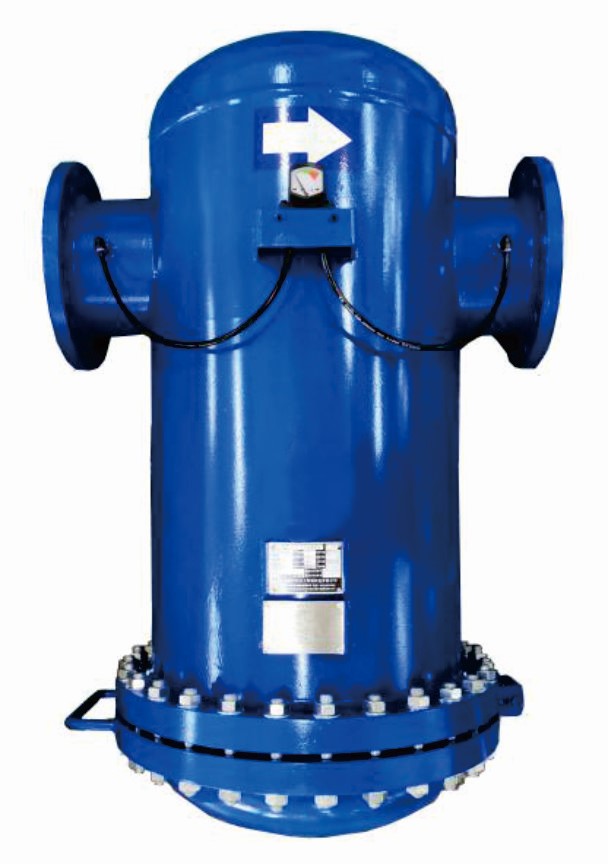

FL Series carbon steel flange compressed air filter
Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation.
Scala flange compressed air filter are manufactured for lowest pressure drop and in accordance with International Standard for compressed air quality ISO8573.1:2001
SCALA flange compressed air filter is equipped with differential pressure gauge which can precisely indicate the differential pressure and remind user to replace the element timely.
Stailness steel automatic drain with manual testing function. It has high reliability and durable lifetime. If the condensate water is not discharged timely, the oil and water may be brought into the downstream pipeline to cause contamination.
Pleated filter elements provides a greater filtration volume than non-pleated. The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.
Stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.
Heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.
No Pull rod design, saving installation space and very easy to change the element.
Elbow piping from air inlet to element which has smaller pressure drop compared to right anglepiping. Antioxidative and painting treatment on housing features high corrosion resistance.
Air leakage can cause energy loss,many micro leakages are not easily found, SCALA filters are 100% leakage tested.
Flange compressed air filter filtration gade
Grade P - 3 micro general purpose particulate filter
Separator, filter, removal large amount of solid or liquid rust, abrasion particles.
Grade M- 1 micro,0.1mg/m3 general purpose coalescing filter
Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols
Grade H- 0.01micro,0.01mg/m3 high efficiency colaescing filter
Removal of small amounts of solid or liquid,fine contaminants,fine dust particle,oil mist and aerosol
Grade C- 0.003mg/m3 active carbon filter
Removal of small amounts of gaseous, contaminants in particular oil vapor.
Flange compressed air filter technical specifications:
Filter Model | Flow Capacity | Inlet/Outlet Connection | Element Model | Eement Quantity | Dimensions(mm) | Weight | |||
m3/min | cfm | A | B | C | Kg | ||||
FL1400 | 42 | 1483 | DN100 | 0745FE* | 2 | 525 | 980 | 782 | 96 |
FL2100 | 63 | 2224 | DN100 | 0745FE* | 3 | 525 | 1003 | 794 | 102 |
FL2800 | 84 | 2965 | DN150 | 0745FE* | 4 | 577 | 1064 | 857 | 147 |
FL3500 | 105 | 3707 | DN150 | 0745FE* | 5 | 651 | 1123 | 862 | 161 |
FL4448 | 126 | 4448 | DN200 | 0745FE* | 6 | 651 | 1180 | 891 | 182 |
FL5189 | 147 | 5189 | DN200 | 0745FE* | 7 | 718 | 1246 | 944 | 211 |
FL5930 | 168 | 5903 | DN200 | 0745FE* | 8 | 718 | 1246 | 944 | 240 |
FL6672 | 189 | 6672 | DN200 | 0745FE* | 9 | 784 | 1262 | 936 | 280 |
FL7350 | 210 | 7413 | DN250 | 0745FE* | 10 | 784 | 1317 | 964 | 290 |
FL8542 | 242 | 8542 | DN250 | 0745FE* | 11 | 834 | 1483 | 1122 | 380 |
FL10096 | 286 | 10096 | DN300 | 0745FE* | 12 | 876 | 1540 | 1132 | 439 |
FL11649 | 330 | 11649 | DN300 | 0745FE* | 13 | 998 | 1586 | 1146 | 550 |
Flange compressed air filter operating limits
Max. working pressure: 10bar g
Max.operating temperature for grade P,M and H : 100 deg c
Max.operating temperature for grade C: 60 deg c
Correction Factor
Pressure-bar g |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Factor |
0.5 |
0.63 |
0.75 |
0.88 |
1 |
1.13 |
1.25 |
1.38 |
For the maintenance of the flange compressed air filter element, it is recommended to store the filter element as a spare part for use at any time. If the life of the compressed air filter is less than 6 months, it indicates that the compressor needs maintenance, or the pipeline is corroded and polluted seriously. The filter element should be replaced regularly (6 months). When replacing the filter element, wash the filter housing and auto drain with warm soapy water to remove oil accumulation. Fill the housing with water when cleaning, and observe whether the auto drain is working properly. It is to see whether the water is discharged from the drain, and the detailed instructions for replacing or replacing the filter element provided by the filter manufacturer should be followed.
