F Series 16bar compressed air coalescing filter

Compressed air contains harmful solid, liquid and vaporous contaminants that can damage pneumatic equipment, control and instruments. Removal of these contaminants is necessary to sustain equipment life and continue efficient production operation.

F Series 16bar compressed air coalescing filter are manufactured for lowest pressure drop and in accordance with International Standard for compressed air quality ISO8573.1:2001

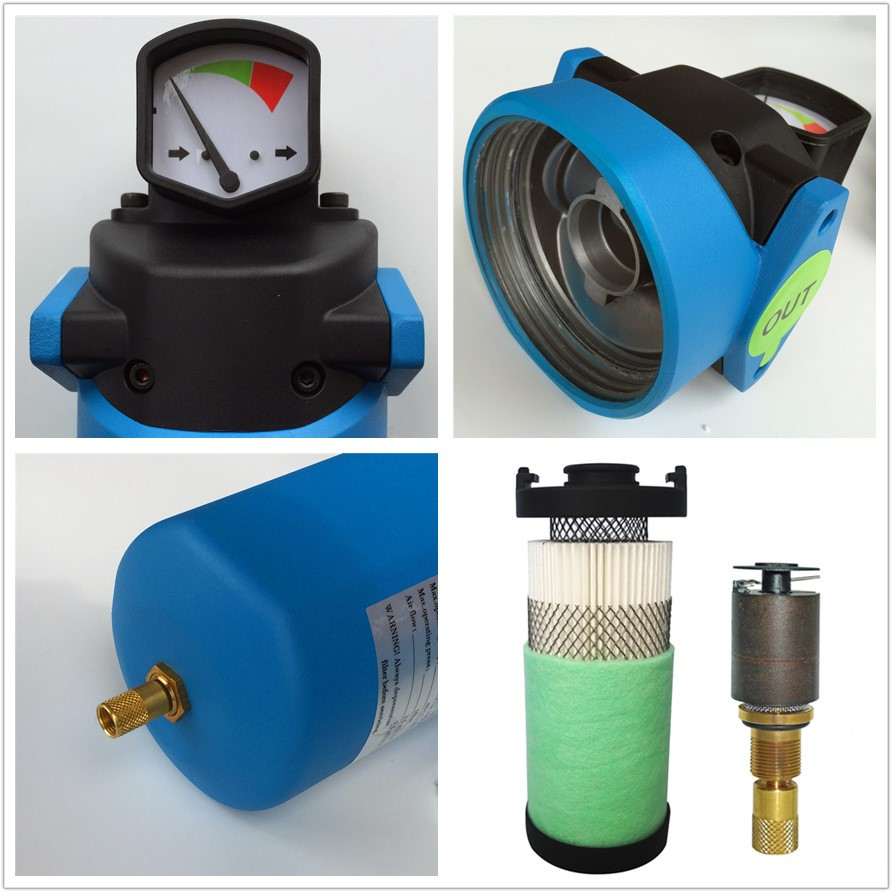

F Series 16bar compressed air coalescing filter is equipped with differential pressure gauge which can precisely indicate the differential pressure and remind user to replace the element timely.

Stailness steel automatic drain with manual testing function. It has high reliability and durable lifetime. If the condensate water is  not discharged timely, the oil and water may be brought into the downstream pipeline to cause contamination.

Pleated filter elements provides a greater filtration volume than non-pleated. The large surface area and the low velocity, increase the space for holding contaminants,which reduce the differential pressure cased by retention of solid particles. The service life increase with a result of lower running cost.

Stainless steel diamond mesh which has larger filtration area and less pressure resistance compared to circular hole mesh.

Heat and corrosion resistant polyester wadding instead of traditional form. Form tears under high operational temperature causing the broken pieces to be carried over down stream.

No Pull rod design, saving installation space and very easy to change the element.
Elbow piping from air inlet to element which has smaller pressure drop compared to right anglepiping. Antioxidative and painting treatment on housing features high corrosion resistance.

Air leakage can cause energy loss,many micro leakages are not easily found, SCALA coalescing filter are 100% leakage tested.

Coalescing filter compressed air filter filtration grade

1.Grade P - 3 micro general purpose particulate filter
Separator, filter, removal large amount of solid or liquid rust, abrasion particles.
2.Grade M- 1 micro,0.1mg/m3 general purpose coalescing filter
Removal of medium amounts of solid or liquid, fine contaminants, fine dust particle, small droplets and aerosols
3.Grade H- 0.01micro,0.01mg/m3 high efficiency colaescing filter
Removal of small amounts of solid or liquid,fine contaminants,fine dust particle,oil mist and aerosol

4.Grade C- 0.003mg/m3  active carbon filter
Removal of small amounts of gaseous, contaminants in particular oil vapor.

Coalescing filter technical specifications

Operating limits
Max. working pressure: 16bar g
Max.operating temperature for grade P,M and H :  100 deg c
Max.operating temperature for grade C:  60 deg c

Coalescing filter Technical Specifications

Correction Factor

Multiply the filter's capacity by the correction factor to get the new filter capacity. For example, F0125 (3.5m3/min) filter operating at 10bar has a correction factor 1.38, 1.38 x 3.5 = 4.83m3/min  capacity at 10bar.

In the oil and gas industry, the petrochemical industry and the oil refinery, liquid / gas coalescer filter are frequently used to remove liquids from gases such as seal gas, fuel gas, heating and cooling gas, injection gas as well as numerous technical gases. The coalescing filter element from BOLL & KIRCH consists of two layers, which fulfil different tasks: The first layer separates solids that may still be in the gas stream. In the second layer, liquid droplets are separated into a special tissue by coalescing the droplets.

F Series 16bar compressed air coalescing filter maintenance and maintenance:
1. Periodically open the drain valve (depending on the water accumulation during the work), and drain the sewage accumulated in the cup.
2. The filter core and the water storage cup should be cleaned regularly. The filter core should be put in mineral oil and washed with compressed air. When removing, use a container wrench to remove the water storage cup, then loosen the filter element fixing nut, and then take out the filter element. The cleaning of the water storage cup should be rinsed in an oil solution, and it should not be washed in acetone, ethyl acetate, toluene and other solutions, and to prevent blurring of the sight after damage to the hair.
3. The drain valve is opened without draining water. The drain channel is blocked by dust, and should be cleaned and discharged to remove debris.
4. Air leakage from the drain valve may be due to the looseness of the drain valve and the drain valve needs to be tightened; it may also be that the debris catches the drain valve so that it cannot be closed, the drain valve needs to be cleaned to remove debris; it may also be the drain The valve seat is damaged and a new drain valve needs to be replaced.
