CH Series 40bar high pressure compressed air filter

Update time: 2020-06-15 13:51:02

Model: CH Series

Category: Compressed Air Filter

Description: CH Series 40bar particulate compressed air filter are suitable for filtering solid and liquid impurities from compressed air below 40bar

E-Mail:sales@scala-filtration.com Order

Details

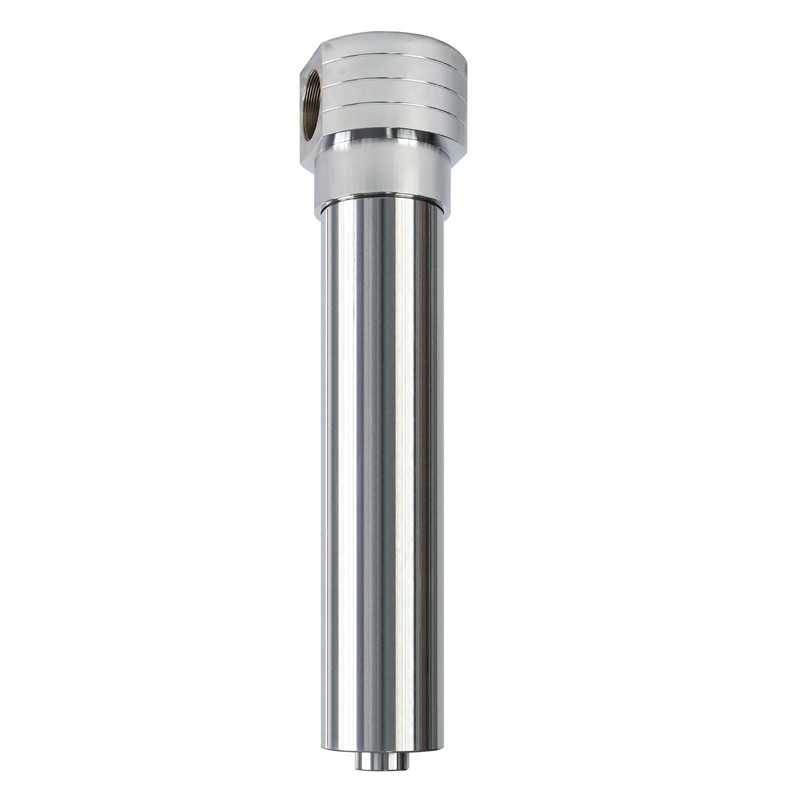

CH Series 40bar particulate compressed air filter

Introduction

CH Series 40bar particulate compressed air filter are suitable for filtering solid and liquid impurities from compressed air below 40bar, high pressure compressed air filter adopts precision manufacturing process to meet the requirements of high pressure technology.

The housing is made of carbon steel and coated with high quality 304 or 316L stainless steel. Using aerodynamics principle to minimize pressure drop of element. it can provide up to 0.01 um and activated carbon grade to meet various special requirements.

Operating Conditions
Housing Material: Carbon steel
Max.working temperature: 80°C
Max working pressure: 40bar
Filtration grade： 3-0.01μm

Filtration Grade

Grade C: particulate: 3µm, oil content :3 ppm

Grade T : particulate: 1µm, oil content 1 ppm

Grade A: particulate:: 0.01lµm, oil content :0.01 ppm

Grade X particulate: 0.01µm, oil content: 0.003ppm(activated carbon)

Grade H particulate: 0.01µm, , Oil content: 0.001ppm

Grade F dust removal with 0.1µm precision

Grade FF super high efficiency dust removal, precision 0.01µm

Technical Specifications

Filter Model	Flow Capacity		Inlet/Outlet Connection	Drain Connection	Eement Model	Dimensions(mm)		Weight
Filter Model	m³/min	cfm	Inlet/Outlet Connection	Drain Connection	Eement Model	A	B	Kg
CH010*	1	35	1/2"	1/2''	EH001*	230	80	3.5
CH020*	2	70	3/4''	1/2''	EH002*	230	80	3.7
CH030*	3	106	1”	1/2''	EH003*	230	106	5.7
CH050*	5	176	1-1/2"	1/2''	EH005*	450	115	12.8
CH070*	7	247	1-1/2"	1/2''	EH007*	505	115	14.9
CH110*	11	388	2"	1/2''	EH011*	620	115	22
CH150*	15	529	2"	1/2''	EH015*	620	620	25

Correction Factor
Pressure-bar	7	10	13	16	20	30	40
Factor	1	1.38	1.75	2.13	2.63	2.88	5.13
