10L per day small liquid nitrogen generator

Update time: 2020-06-15 13:33:18

Model: TRITON2

Category: Liquid Nitrogen Generator

Description: 10L per day small liquid nitrogen system is a fully automated system which once connected to a suitable power supply will generate and store liquid nitrogen from ambient air.

E-Mail:sales@scala-filtration.com Order

Details

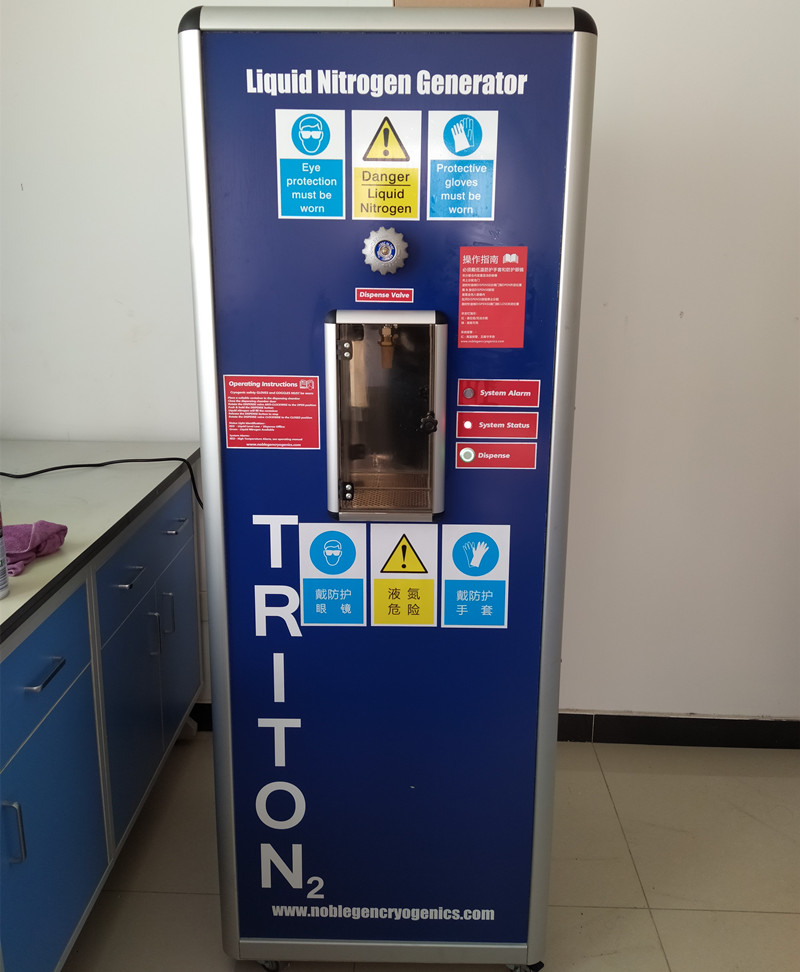

10L per day small liquid nitrogen generator

10L per day small liquid nitrogen system is a fully automated system which once connected to a suitable power supply will generate and store liquid nitrogen from ambient air. Once the internal storage dewar is full TRITON2 switches into standby and waits for the liquid level to drop <50% before restarting to top up the dewar, this means you always have 10-20 litres of liquid nitrogen ready to use.

TRITON2 liquid nitrogen generator requires the use of various technologies to enable to work efficiently and reliably, therefore the components and processes chosen for this product are best available and include:-

oil-free air compressor
PSA nitrogen gas generator
Internal nitrogen storage cylinder
Medical gas filter prior to liqueficiation
Cryo-cooler based on the Gifford Mahon cooling technique
20 litre vacuum insulated tank
PLC control system to maintain total automated system

TRITON2 liquid nitrogen system is suitable for medical applications such as dermatology, cryo-surgery and non-evasive cosmetic surgery where liquid nitrogen is an important utility for clinics. TRITON2 liquid nitrogen generator has various components onboard to enhance its suitability for medical uses for the air inlet suction side and N2 gas production.

Below are some applications suitable for TRITON2 where small amounts of liquid nitrogen are dispensed into flasks or small open dewars:-

Dermatology
Cosmetic Surgery
Vitrification
Freeze fitting
Cooking / Beverage

Technical Specifications

Model:	TRITON2
Liquid nitrogen production rate:	>10 itres/day (>0.42 litres/hour)
Dimensions:	1.2m (L) x 0.8m( W) x1.8m( H)
Built-in Dewar tank capacity:	20 litres
Voltage input optional:	single phase :220v,230v, 50Hz,60Hz
Power consumption:	1.5 kw @ 50Hz
Helium compressor cooling:	Air cooed
Ambient temperature range:	4°c to 32°c
zui High altitude:	3000 meters, optional higher altitude
Compressed air requirements:	Built-in oil-free air compressor
Noise:	<55 dBA @1 metres
Control system:	PLC
High/low level in tank:	100% stop,50% start
Liquid nitrogen pressure:	1 bar g (1.5 bar g relief valves)
Main features:	Dewar vacuum protection system with alarm oxygen analyzer
Certification:	Dewar - EN 13458/97/23/EC; machine - CE /ISO9001：2008
