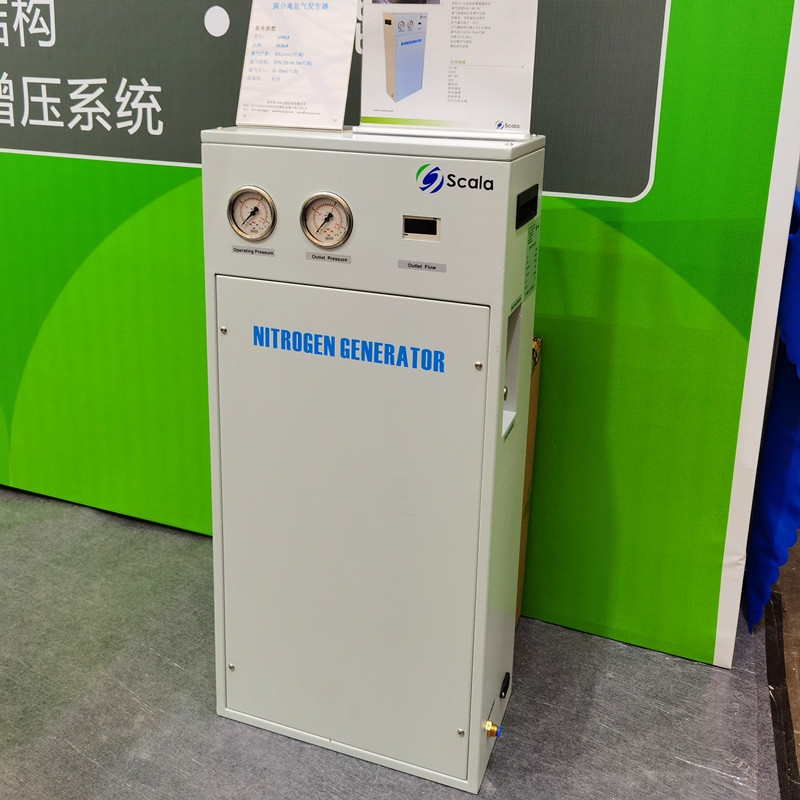

Membrane nitrogen generator manufacturers

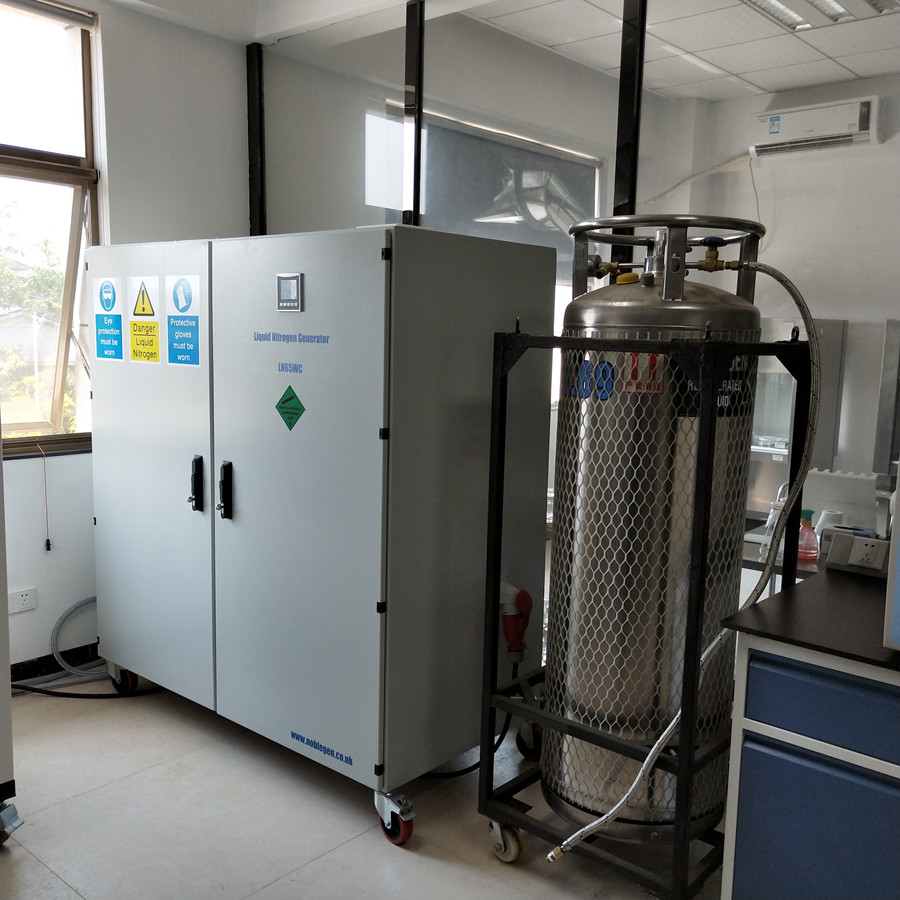

Hangzhou Scala Filtration Technology Co., Ltd. was founded in 2013, specializing in compressed air treatment and gas separation technology. At the same time, it is the authorized agent of laboratory liquid nitrogen generator from UK Noblegen Cryogenics.Scala Filtration offers a wide range of liquid nitrogen generator plant based on advanced GM (Gifford McMahon) cold-head and mixed-refrigerant cryo-cooler. Liquid nitrogen flow capacity ranging from 10liters/day up to 2400liters/day.
SCALA's membrane nitrogen generator uses the Parker nitrogen membrane unit and precision filter imported from Europe. The membrane separates compressed air into two parts: one is 95%-99.9% purity nitrogen, and the other is rich in carbon dioxide and other gases. oxygen. Compressed air enters the center of the fiber through one end of the module, and contacts the membrane as it flows through the inner hole of the fiber. Oxygen, water vapor and other trace gases permeate the fiber membrane very easily and are removed through a permeation port, while the nitrogen remains inside the membrane until it flows to the outlet. Because water vapor also permeates the membrane, nitrogen becomes very dry, and the pressure dew point can reach below -50°C.
Features and advantages of SCALA's membrane nitrogen generator
1. It can run without power on;
2. Small size can be placed on the desktop or wall-mounted;
3. Nitrogen purity is 95% -99.5%;
4. Nitrogen flow display and adjustment function;
5. Almost no noise, no mechanical moving parts;
6. The dew point of the outlet air is lower than -40℃;
7. The content of outgassing particles is less than 0.01 micron;
8. Nitrogen outlet pressure 0-7bar;
9. The adjustable pressure drop is less than 0.8bar;
10. Low compressed air consumption.
SCALA's membrane nitrogen generator application field
1. LC/MS liquid-mass spectrometry;
2. ELSD evaporative light radiator;
3. Nitrogen blowing instrument;
4. Solvent evaporation;
5. MP-AES;
6. CAD electrospray detector;
7. Purge and capture;
8. Solid phase extraction.
The selling point of SCALA's membrane nitrogen generator
1. No electric heater is used, because there is no need to heat the membrane to open the polymer structure, and analytical grade nitrogen of the required purity can be generated at the moment of connecting the compressed air.

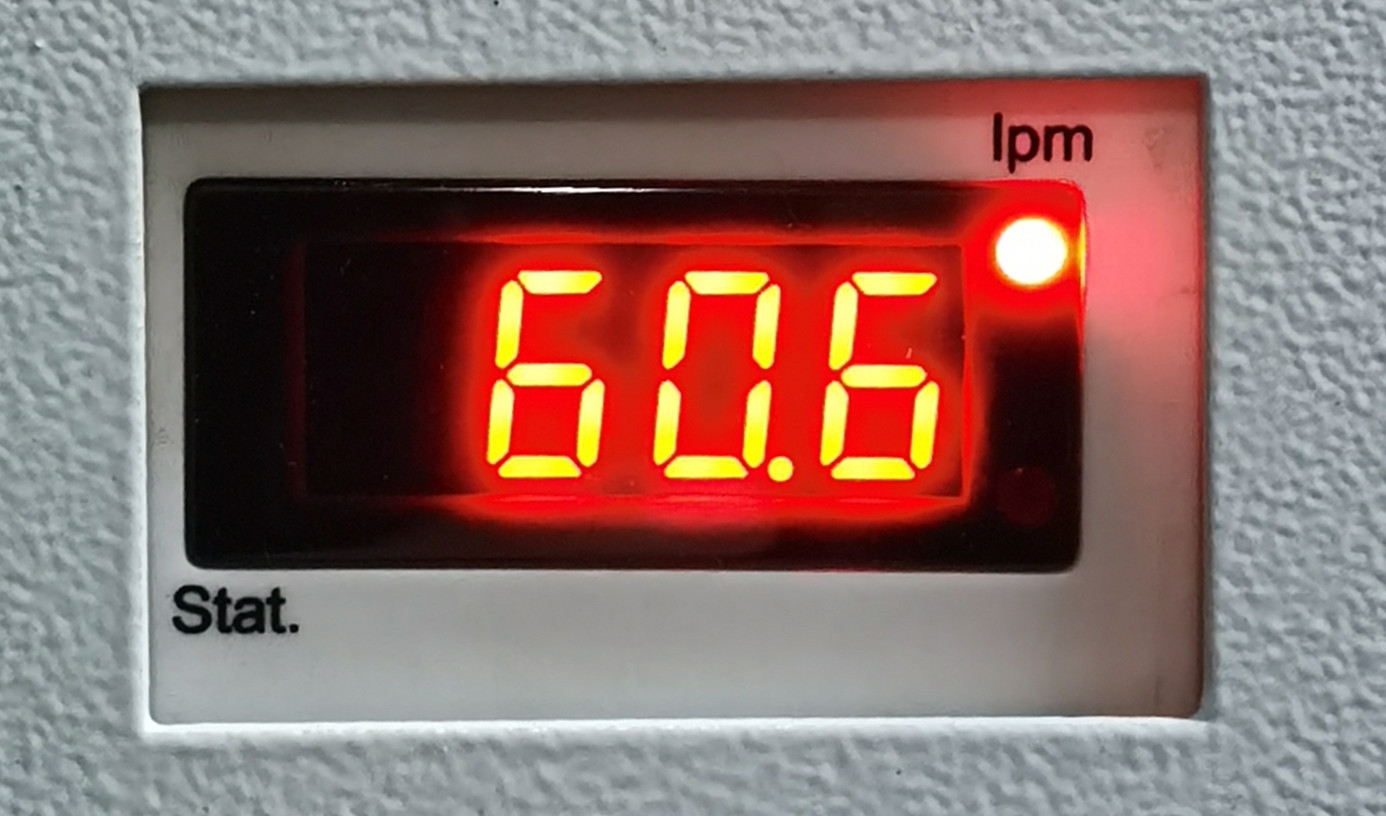

2. Flow display and adjustment The integrated thermal nitrogen flow meter, without complicated debugging, can dynamically display the nitrogen flow in real time by plugging in the power supply.
3. Integrated micro flow control valve, which can quickly adjust the required nitrogen flow rate, and judge the nitrogen purity according to the flow rate.
4. The air inlet of the high-performance filter is equipped with a 0.01 micron coalescing filter and an activated carbon filter, and the nitrogen outlet is equipped with an activated carbon filter to ensure analytical-grade nitrogen.
5. Using the world-recognized Paker nitrogen membrane unit, there will be no performance degradation caused by the aging of the membrane unit over time, and the life expectancy is more than 10 years.
6. The filter has passed ISO12500 compressed air test certification and Lloyd's pressure vessel directive.
Technical parameters of SCALA membrane nitrogen generator
Model | MNG1 | MNG2 | MNG3 | MNG4 | MNG5 |
Nitrogen flow | 12L/min | 30L/min | 60L/min | 90L/min | 120L/min |
Air flow | 40L/min | 99L/min | 198L/min | 297L/min | 396L/min |
Nitrogen pressure | 7 barg (100 psig) | 7 barg (100 psig) | 7 barg (100 psig) | 7 barg (100 psig) | 7 barg (100 psig) |
Nitrogen concentration | 95%-99.5% (non-oxygen content) | 95%-99.5% (non-oxygen content) | 95%-99.5% (non-oxygen content) | 95%-99.5% (non-oxygen content) | 95%-99.5% (non-oxygen content) |
Residual particles | < 0.01 µm | < 0.01 µm | < 0.01 µm | < 0.01 µm | < 0.01 µm |
Pressure dew point | ≤ -40°C (-40°F) | ≤ -40°C (-40°F) | ≤ -40°C (-40°F) | ≤ -40°C (-40°F) | ≤ -40°C (-40°F) |
Ambient temperature | 5- 35℃ | 5- 35℃ | 5- 35℃ | 5- 35℃ | 5- 35℃ |
Dimensions (WxDxH) | 39 x 20x 47cm | 39 x 20x 47cm | 39 x 20x 83cm | 39 x 20x 83cm | 39 x 20x 83cm |
Weight | 12kg | 15kg | 18kg | 21kg | 26kg |
Intake requirements | Particles <0.1 mg/m3 (≤ 0.01 ?m); oil ≤ 0.01 mg/m3; Water content ≤ 5°C pressure dew point; inlet pressure 5-13 bar; pressure drop <0.8bar (12psi) |
Note:The above parameters are based on 1013mbar(a), ambient temperature 20°C, inlet pressure 8 barg
Performance table
Nitrogen concentration | Nitrogen flow rate (L/min) @ 7barg & 25 degrees | |||||
Model | 95% | 96% | 97% | 98% | 99% | 99.5% |
MNG1 | 19 | 15 | 12 | 9 | 5 | 3 |
MNG2 | 47 | 38 | 30 | 23 | 14 | 9 |
MNG3 | 102 | 84 | 60 | 51 | 34 | 23 |
MNG4 | 149 | 122 | 90 | 74 | 48 | 32 |
MNG5 | 204 | 168 | 120 | 102 | 68 | 46 |
